SOLAR SHOWER

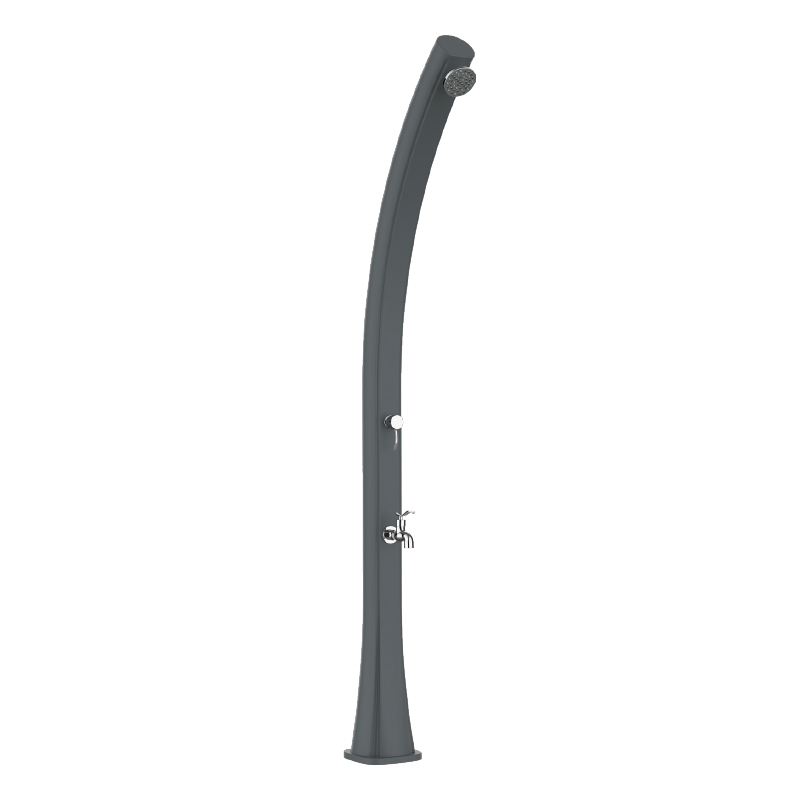

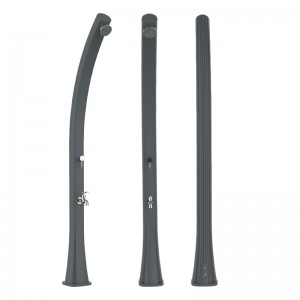

STARMATRIX SS0935 25L Elegant Bending Solar Shower

Description
Mounting
Starting Up
Use
Description

• Elegant bending shower to bring a passion to your pool and garden

• 4 inch top shower head with foot tap and drain valve

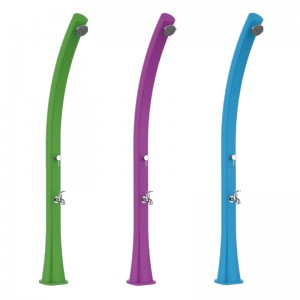

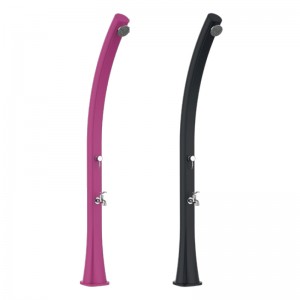

• 25 L volume with different colors can be selected

Mounting

Mounting at the location
1. Choose a location for the solar shower that receives the most direct sunlight.

2. The solar shower is fixed to the floor with the integrated base plate and the mounting bolts supplied.

3. For mounting, you need a drill. Mark the position of the mounting
holes according to the holes in the base of the solar shower. Drilling depth in concrete or stone should be at least 45 MM. Then the bolt has good traction and the necessary support.

4. Insert the dowels into drilled holes.

5. Place the lower tube over the holes and secure it with bolts.

When using tools, please ensure that the surface of the parts is not damaged.

Starting Up

Attach the garden hose to the inlet port of the shower. The max. operating pressure for the solar shower is 3 Bar.
Be sure the hose is placed safely.

Initial Setup:
Connect the water hose to the shower. Filling tube with valve in“hot"position ensures no air pockets are trapped in the shower.

The filling of the water tank will take about 4 to 6 minutes. lf water runs evenly out of the shower head, close the tap because now the tank is completely filled.

Use

Caution: Due to solar radiation, the water in the solar tank can get hot. We recommend opening the handle in the middle position between hot and cold.

1. Lift the handle to its ON position and you are ready to enjoy your solar heated water! Note: The water supply must be turned on for the shower to run!

2. Turn off the water supply to shower when done.

If the shower has not been used for 24 hours or more before the next use it should be rinsed for at least 2 minutes to replace the water in the solar tank completely. In warm environments, pathogens can multiply very well in stagnant water. Stagnant water in the tank has no drinking water quality anymore.

SS0935

Material PEHD
Weight 8.5 KGS / 18.74 LBS
Height 2200 MM / 86.61"
Packing Size 2330x220x220 MM
91.73"x8.66"x8.66"
