POOL FILTER

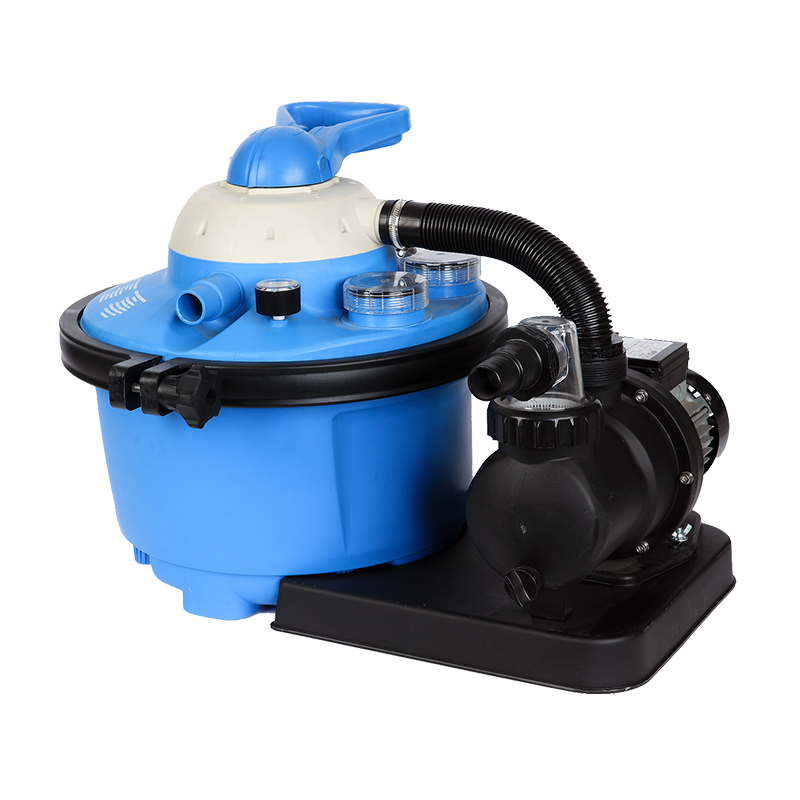

STARMATRIX ELITE 1025 Swimming Pool Sand Or AQUALOON Filter

Description
Product Details
Filter System Info
Filter Pump Info
Description

• Model No.: 1025
• Pump Power: 450 W / 1/2 HP
• System Flow rate: 6 M³/H
• Pump QMAX: 7 M³/H
• Filter & pump Junction: 32&38 MM
• Precisely engineered inside the filter provide an even flow through the sand bed, ensuring maximum filtration.
• Sand filter pump including 7 way valve, connecting hose, pressure gauge, and base plate prepared for unique internal UV light(optional) treatment and also for internal water heating(optional) quiet and self-priming pump with pre-filter adaptors for pool hoses 32/38 MM connection.
• To maintain crystal-clear and sparkling pool water, the filter system can be operated with filter sand as well as with STARMATRIX AQUALOON Filter Balls as filter medium.

Product Details

Large pre-filter
• The pre-filter is used to prevent the large hazard like leaf, insect and recycle your pool at a clear condition.
7 way valve
• There are 7 options for optimum operational quality and crystal-clear water,Filter, backwash, rinse, empty, circulate, winter setting, closed.
• Using the solid dial, you can carry out the whole water cleaning process without getting wet, or having to block off or dismantle anything.
Solid clamping ring
• A quality checked, solid clamping ring connects the filter holder to the 7 way valve. A large rotary knob makes it easy to close without any tools.
Large chamber for filter sand
• Once the top lid is removed, the chamber space is visible. The large opening makes it easy and, above all, easy to change the filter sand. With above ground pools, this should be changed every 1 - 2 years.

Filter System Info

Salt water suitable: yes
Water capacity: 33.000 L
Circulation capacity: 6.600 L/H
Boiler size: 400 MM
Connection size: Ø 32/38 MM
Valve type: 7-way valve with pressure gauge
*Sound pressure level (10 M): < 70 DB (A)
Water temperature: 10°C - 35°C
Usable filter medium 1: filter sand
Quantity of filter medium 1 used: 15 KG
Sand grain size: 0,70 - 1,20 MM
Usable filter medium 2: 400 G
Quantity of usable filter medium 2: 400 G

Filter Pump Info

Power supply: 220-240 V ~ / 50 HZ
Pump power: 450 W
Transformer: no
Pump power: 8.500 L/H
Operating principle: self-priming
Head: 9,00 M
Pre-filter: yes
Timer present: yes
Time switch: no
External timer possible: no
Protection class: IPX5
Insulation class: F

certificate (2)

Timer function can be added for all pumps

product

Optional special connector for easy connection to existing pools

Filter ELITE 1025

Pump Power 450 W
Pump Flow Rate 8500 L/H
Flow Rate(Sand) 6060 L/H
Flow Rate(Aqualoon) 6300 L/H
Volume Sand 16 KG
Volume Aqualoon 445 G
Tank Volume 25 L
Box Dimesnsion 69x46x33 CM
G.W 14.5 KGS

Additional Spare Parts To Be Use

product1

UV system

product2

Electric heater
