SOLAR HEATER

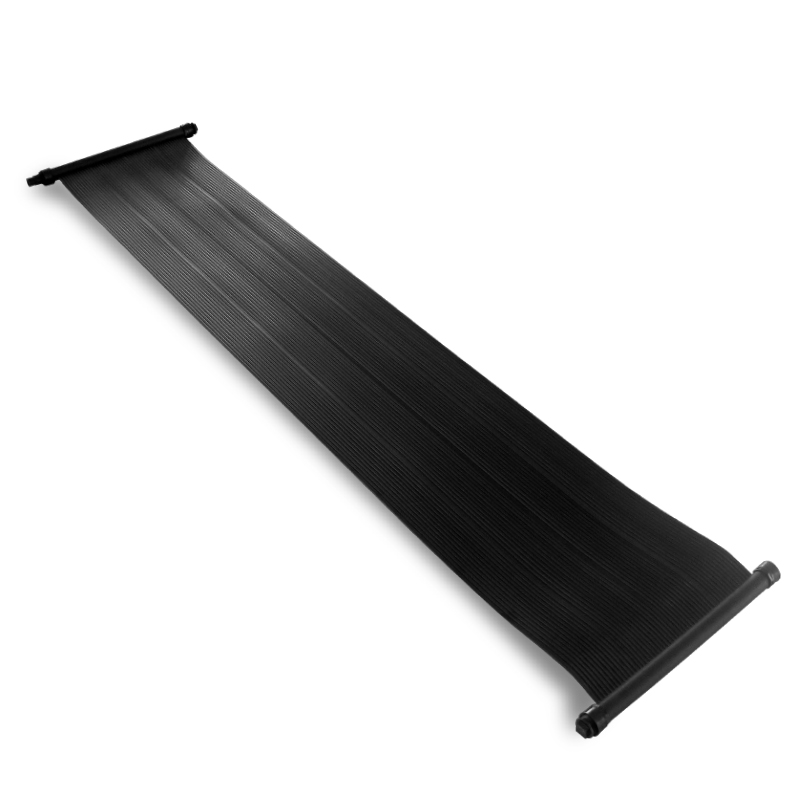

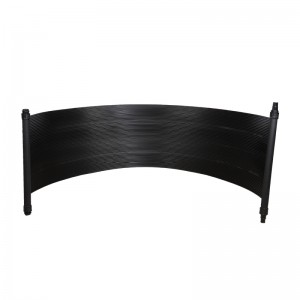

STARMATRIX Solar Panel For Above Ground Pools And Roof Or Rack

Description
Characteristics
Winterizing(Ground)
Winterizing(Roof/Rack)
Description

• Solar collector Compact will keep your swimming pool warm and comfortable. The solar collector increases the pool’s water temperature by 4-6 degrees. Depending on the desired temperature, one or more elements can be connected in series. The connection is made between the filter pump and the basin inlet nozzle.

The solar collector is suitable for salt water.

Delivery is without connecting hoses or mounting material.

Characteristics

• Heating by solar energy for above ground pools

• Easy to install with your existing pool circulation system

• Over 12 KW/HS of heat daily

• Suitable for all pool pumps

• 30 minutes to complete the installation

• Can be mounted on the ground, the roof or rack

Winterizing(Ground)

System(s) on ground
Turn on your solar heating system whenever the panel(s) are in sunlight. You will know the panel is working by touching it, it should feel cool to the touch. That means the heat from the sun is being transferred to the water inside the panel. Turn off your solar heating system at night and whenever it is raining. Failing to do so will cool your pool. It is recommended to close your solar heating system whenever you do a backwash or whenever you manually vacuum your swimming pool. It is also recommended to use a solar blanket or a Liquid Solar Blanket. This will help keep more of the heat generated by the solar panel in your pool.

Winterizing
System(s) on ground
At the end of the season, your solar panels must be drained of all water.
• After your pool has been closed, disconnect the hoses from the panel.
• Manipulate the panel until the water is completely out.
• Roll the panel up.
• Store the panel in a heated place until next season.

Winterizing(Roof/Rack)

System(s) mounted on a roof or a rack
At the end of the season, your solar panels must be drained of all water.
• After your pool has been closed, turn your by-bass valve in such a way to allow the water from your panels to drain. Wait half an hour for panels to drain.
• Unscrew the Vacuum Relief Valve or the Threaded cap at the top of the solar system.
• Unscrew the threaded cap at the bottom of the solar system and make sure all the water is drained out of the system. All your plumbing should be installed in such a way to allow full drainage of the system. If you are not sure that all panels have been drained properly: disconnect each panel, raise them up and make sure that no water is present. Once completely drained, the panels can be left on the roof or rack. The Starmatrix panels are designed to withstand the harshest winters.
• Apply Teflon to the Vacuum Relief Valve and Threaded Caps and re-screw them into the solar system. Do not over tighten.

Important: Unlike the pipes for your pool, blowing air in the panel will not drain it. The air will only empty a few tubes.



SOLAR PANEL

  Available Sizes Box Dims G.W.
SP066 Panel Heater 2'x20'(1 piece of 0.6x6 M) 320x320x730 MM / 12.6"x12.6"x28.74" 9 KGS / 19.85 LBS
SP066X2 Panel Heater 4'x20'(2 piece of 2'x20') 400x400x730 MM / 15.75"x15.75"x28.74" 17 KGS / 37.50 LBS
SP06305 Panel Heater 2'x10'(1 piece of 0.6x3.05 M) 300x300x730 MM / 11.81"x11.81"x28.74" 4.30 KGS / 9.48 LBS
SP06305X2 Panel Heater 4'x10'(2 piece of 2'x10') 336.5x336.5x730 MM / 13.25"x13.25"x28.74" 9.20 KGS / 20.30 LBS
SP06366 Panel Heater 2'x12'(1 piece of 0.6x3.66 M) 300x300x730 MM / 11.81"x11.81"x28.74" 5.50 KGS / 12.13 LBS
SP06366X2 Panel Heater 4'x12'(2 piece of 2'x12') 336.5x336.5x730 MM / 13.25"x13.25"x28.74" 10.40 KGS / 22.93 LBS
